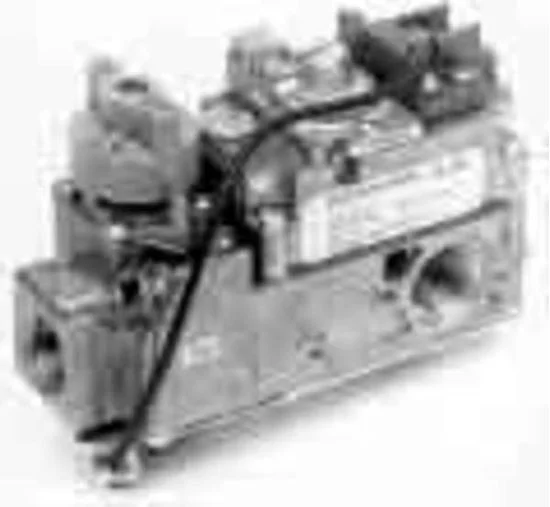

Robertshaw 24V Low Capacity Gas Heating Valve – Part# 710-402

Description

Robertshaw 24V Low Capacity Gas Heating Valve The 710 low capacity gas heating valves are designed for recreational vehicles and other applications with limited space. All models include a manual valve (gas cock), automatic pilot safety valve, pilot outlet, pilot gas filter and pilot adjusting key. THE CONTROL CAN BE MOUNTED IN ANY POSITION EXCEPT UPSIDE DOWN AND ALL MODELS HAVE 3-POSITION OUTLETS. Specifications:
— Factory model 7000 ERLC
— Inlet Size 1/2″
— Outlet Size 1/2″
— 2 Reducer Bushings 1/2″ x 3/8″ NPT
— Temperature range (hydraulic models) 58
° to 90
°F
— Pilot outlet 1/4″ tubing
— Gas cock dial marking off-pilot-on
— Maximum ambient temperature 175
°F
— Maximum capacity natural gas 70,000
— Maximum capacity L.P. gas 112,000
— Maximum inlet pressure 14″ W.C. (1/2 PSI) Replaces:Invensys Climate Controls 739501527, 739501527 ROBERTSHAW 706-501-502 WHIRLPOOL 99728725
